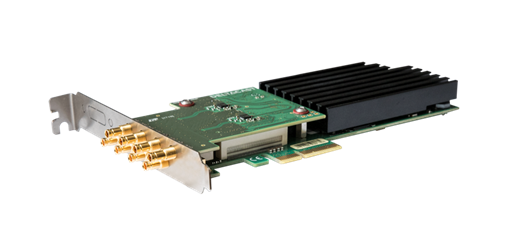

Compact 8-channel SDI capture card

Ideal solution for high-density SDI capture in a compact from factor. The DELTA-hd-elp-d 80 hosts eight independent inputs, each one being able to capture from SD (PAL, NTSC) to HD-SDI (1080i, 720p) formats. The DELTA-hd-elp-d 80 supports additional useful features such as the Thumbnail system, allowing to capture a stretched down preview of each channel. With an impressive performances vs power consumption ratio and passive cooling, the DELTA-hd-elp-d 80 is the ideal solution for high-density industrial applications, encoders, media servers, multiviewers, and many other products.

  • 4K
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input No
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit
Scalers 8x thumbnail scalers
CSC No
Video Interfaces
Video Interfaces HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98

4K 3840x2160 or 4096x2160 : 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
