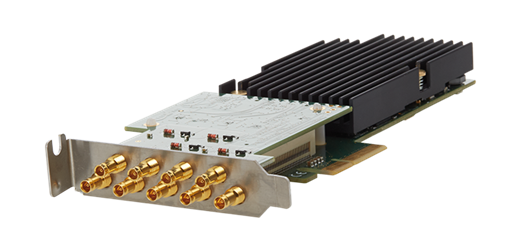

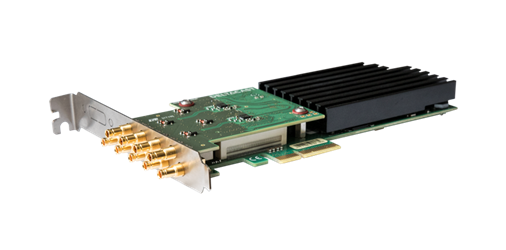

Compact 6-input, 2-output, SDI card

Ideal solution for high-density applications requiring up to six inputs and two outputs supporting formats from SD (PAL, NTSC) to HD-SDI (1080i, 720p) on a very compact form factor. The input and output channels can run independently, or can be combined together to implement stunning on-the-fly SDI processing and many more application like captions inserters, playout servers and GPU-based CG. The DELTA-hd-elp-d 62 is especially appreciated in sport solutions where many cameras must be connected to the processing system. this card also features an analog reference input (genlock) for perfect integration within broadcast installations. With an impressive performances vs power consumption ratio and passive cooling, the DELTA-hd-elp-d 62 is the ideal solution for multi-channel industrial applications where the reliability is not an option.

  • 4K
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture (on request only, ask support)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit
Scalers 6x thumbnail scalers
CSC No
Video Interfaces
Video Interfaces HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98

4K 3840x2160 or 4096x2160 : 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
