DELTA-hd-e 10

DELTA-hd-e 10

DELTA-hd-e 10

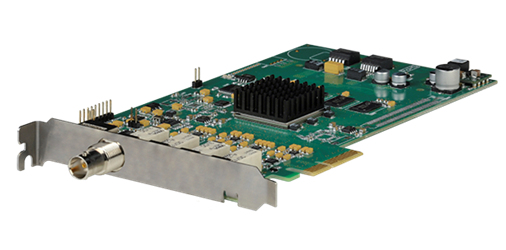

Single channel SDI capture card

Perfect match for applications requiring one input supporting formats from SD (PAL, NTSC) to HD-SDI (1080i, 720p). The DELTA-hd-e 10 card proved its robustness for years, and is tailored for industrial applications where reliability is not an option.

  • THUNDER-
    BOLT
  • BNC Con.

Specifications

Hardware features
Bus Interface PCIe Gen1 x4
Form Factor Standard-height, half-length PCIe
Connectors BNC
Sync Input No
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit
Scalers No
CSC No
Video Interfaces
Video Interfaces HD-SDI (ST 292),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
