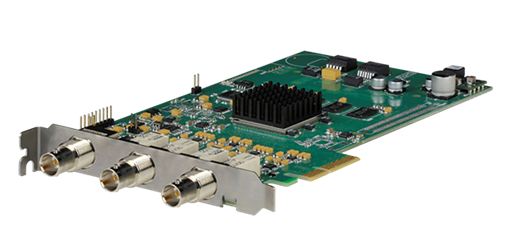

Dual channel SDI playout card

Perfect match for applications requiring two independent outputs, each one supporting formats from SD (PAL, NTSC) to HD-SDI (1080i, 720p). The DELTA-hd-e 02 features an analog reference input (genlock) for perfect integration within broadcast installations. This card proved its robustness for years, and is tailored for industrial applications where reliability is not an option.

  • THUNDER-
    BOLT
  • BNC Con.

Specifications

Hardware features
Bus Interface PCIe Gen1 x4
Form Factor Standard-height, half-length PCIe
Connectors BNC
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit
Scalers No
CSC No
Video Interfaces
Video Interfaces HD-SDI (ST 292),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
