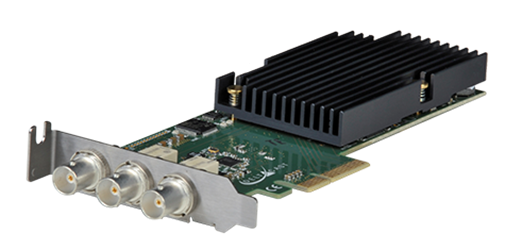

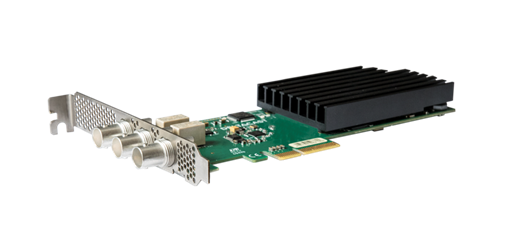

Compact single input, single output, SDI keyer card

Hosting one input and one output supporting formats from SD (PAL, NTSC) to 3G-SDI (1080p), as well as a hardware keyer for on-the-fly computer graphics mixing, the DELTA-3G-elp-key 11 is a solid building block to implement products like captions renderers, CG, and any product with graphics overlay capabilities. The DELTA-3G-elp-key 11 features an analog reference input (genlock) and by-pass relays for perfect integration within broadcast installations. With an impressive performances vs power consumption ratio, reduced form factor and yet passive cooling, this card is tailored for industrial applications where reliability is not an option.

  • 3G SDI
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE
  • KEYER

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors BNC
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture (on request only, ask support)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit
Scalers No
CSC user programmable on input and output
Video Interfaces
Video Interfaces 3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
HD-SDI (ST 292),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
