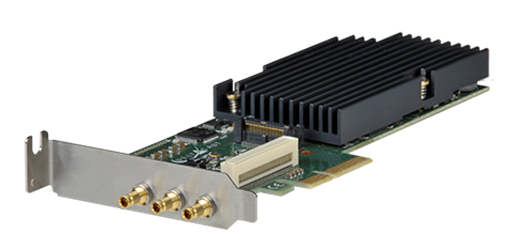

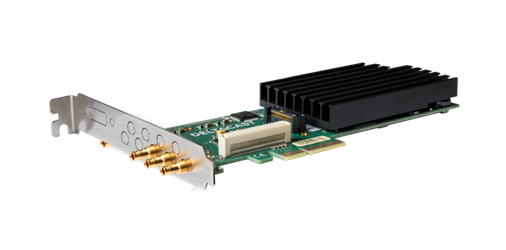

Compact single input, single output, SDI card

Ideal solution for applications requiring one input and one output supporting formats from SD (PAL, NTSC) to 3G-SDI (1080p) on a very compact form factor. The input and output channels can run independently, or can be combined together to implement stunning on-the-fly SDI processing and many more application like captions inserters, playout servers and GPU-based CG. The DELTA-3G-elp-d 11 also features an analog reference input (genlock) for perfect integration within broadcast installations. With an impressive performances vs power consumption ratio and passive cooling, the DELTA-3G-elp-d 11 is the ideal solution for industrial applications where the reliability is not an option.

  • 3G SDI
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture (on request only, ask support)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit
Scalers No
CSC No
Video Interfaces
Video Interfaces 3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
HD-SDI (ST 292),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed caption)
