Combination of SDI and ASI channels on a card

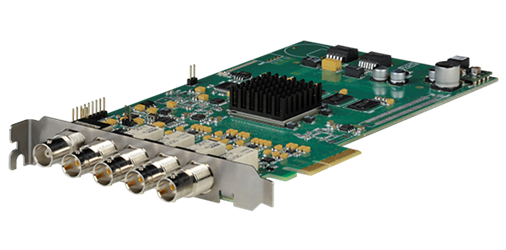

Especially designed for products based on software codecs, the DELTA-hd11-asi11-e hosts one SDI input and one SDI output supporting formats from SD (PAL, NTSC) to HD-SDI (1080i, 720p), as well as one ASI input and one ASI output. All channels can run independently and concurrently. The card also features an analog reference input (genlock) for perfect integration within broadcast installations. Based on a design proving its robustness for years, the DELTA-hd11-asi11-e is tailored for industrial applications where reliability is not an option.

  • THUNDER-
    BOLT
  • BNC Con.

Specifications

Hardware features
Bus Interface PCIe Gen1 x4
Form Factor Standard-height, half-length PCIe
Connectors BNC
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes Single-Link SDI 4:2:2 10-bit, DVB-ASI Transport Stream (MPEG-2, H.264, HEVC/H.265 or JPEG2000 compliant transport stream)
Scalers No
CSC No
Video Interfaces
Video Interfaces HD-SDI (ST 292),
SD-SDI (ST 259),
DVB-ASI at 270Mb/s
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98

DVB-ASI Transport Stream
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
