DELTA-h4k-elp 20

DELTA-h4k-elp 20

DELTA-h4k-elp 20

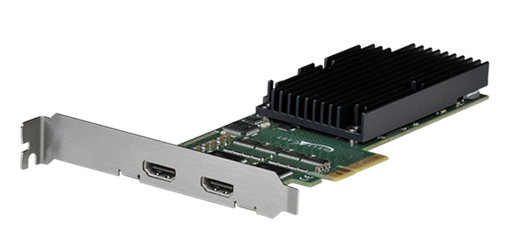

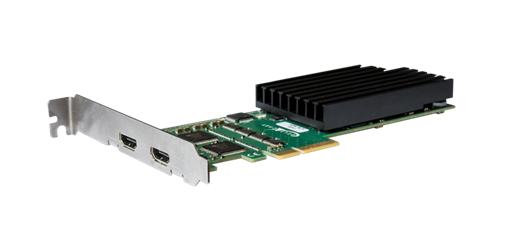

Dual channel HDMI™ capture card

High-end HDMI capture card hosting two inputs with support for many formats and interfaces, including HDMI 2.0 4:2:0 formats for 4K and UHD resolutions at up to 60Hz. Thanks to an advanced EDID management with custom content support, the DELTA-h4k-elp 20 seamlessly brings virtually any HDMI signals into your media server. With an impressive performances vs power consumption ratio on very a compact form factor and yet passive cooling, this card is the ideal solution for many applications where the reliability is not an option.

  • 4K
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE
  • SCALER

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors HDMI (Type A)
Sync Input No
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes YCbCr 4:2:2 8-bit (-10/12-bit on request) RGB/YCbCr 4:4:4 8-bit RGB/YCbCr 4:4:4 10/12-bit on request (max 1080p60)
Scalers Yes
CSC Yes
Video Interfaces
Video Interfaces HDMI 1.4b (300MHz TMDS clock)
Video Formats 1920x1080p : up to 120Hz.

1920x1080p 3D Full HD : up to 60Hz.

3840x2160 or 4096x2160 : up to 60Hz (4:2:0 8-bit) or up to 30Hz
Graphic resolutions : up to 1600x1200 @ 60Hz.

Note that some formats will only be available when the second capture channel is not used.
(i.e. only one channel when 1080p120 in RGB 4:4:4, 4K30 in RGB 4:4:4, 4K60 in YUV 4:2:0)
Audio formats /
Ancillary data Audio up to 8-channel IEC60958 (PCM) or IEC61937 (DSD, HBR)
