DELTA-dvi-e 20

DELTA-dvi-e 20

DELTA-dvi-e 20

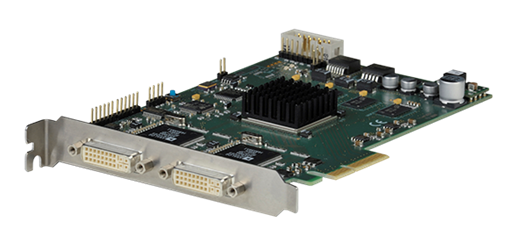

Dual channel DVI capture card

Perfect match for applications requiring two DVI inputs with support for many formats and interfaces including single-link DVI, dual-link DVI and HDMI. Thanks to an advanced EDID management with custom content support, the DELTA-dvi-e 20 seamlessly brings DVI signals into your media server. This card proved its robustness for years, and is tailored for industrial applications where reliability is not an option.

  • THUNDER-
    BOLT

Specifications

Hardware features
Bus Interface PCIe Gen1 x4
Form Factor Standard-height, half-length PCIe
Connectors DVI-I (DL)
Sync Input No
Serial numbering 96-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes YCbCr 4:2:2 8/10/12-bit
RGB / YCbCr 4:4:4 8-bit
Scalers No
CSC Yes
Video Interfaces
Video Interfaces DVI 1.0, Dual Link DVI
HDMI 1.3 (max 225Mhz)
YPrPb (analog component max 148.5Mhz)
Graphic RGB (max 108Mhz)
Video Formats Analog RGB : up to 1600x1200 @ 60Hz, 1920x1080 @ 60Hz.

Analog Component Video : SD and HD video up to 1920x1080 60Hz.

DVI/HDMI : up to 1600x1200 @ 60Hz, 1920x1080 @ 60Hz (Single-Link DVI),
up to 2560x1600 @ 60Hz, 1920x1080 @120Hz (Dual-link DVI)
Audio formats /
Ancillary data /
