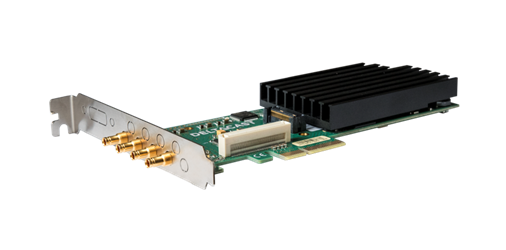

4-channel configurable input or output ASI card

Ideal solution for high-density applications requiring up to four independent DVB-ASI channels.

4-channel product on low-profile PCIe card, dynamically configurable in/out, bitrate up to 213,72 Mbps on each po

  • THUNDER-
    BOLT
  • DIN Con.
  • LOW-
    PROFILE
  • PCIe 2

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input No
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes DVB-ASI Transport Stream (MPEG-2, H.264, HEVC/H.265 or JPEG2000 compliant transport stream)
Scalers /
CSC /
Video Interfaces
Video Interfaces DVB-ASI at 270Mb/s (CENELEC/DVB standard EN50083-9). 75 Ohm interface.
Video Formats TS-ASI (Transport Stream over ASI). Max bitrate of 213,72 Mbps per channel.
Audio formats TS-ASI
Ancillary data TS-ASI
