DELTA-asi-elp 11

DELTA-asi-elp 11

DELTA-asi-elp 11

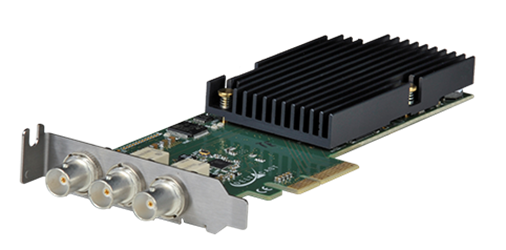

Compact single input, single output, DVB-ASI card

Perfect match for applications requiring one ASI input and one ASI output on a very compact form factor. Input and output channels can run independently, or be combined together to create stunning on-the-fly processors. The DELTA-asi-elp 11 card proved its robustness for years. With minimal power consumption, it is tailored for industrial applications where reliability is not an option.

1 input + 1 output with bypass relays, bitrate up to 213,72 Mbps on each port

  • THUNDER-
    BOLT
  • LOW-
    PROFILE
  • BNC Con.
  • PCIe 2

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors BNC
Sync Input No
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes DVB-ASI Transport Stream (MPEG-2, H.264, HEVC/H.265 or JPEG2000 compliant transport stream)
Scalers /
CSC /
Video Interfaces
Video Interfaces DVB-ASI at 270Mb/s (CENELEC/DVB standard EN50083-9). 75 Ohm interface.
Video Formats TS-ASI (Transport Stream over ASI). Max bitrate of 213,72 Mbps per channel.
Audio formats TS-ASI
Ancillary data TS-ASI
